Broan

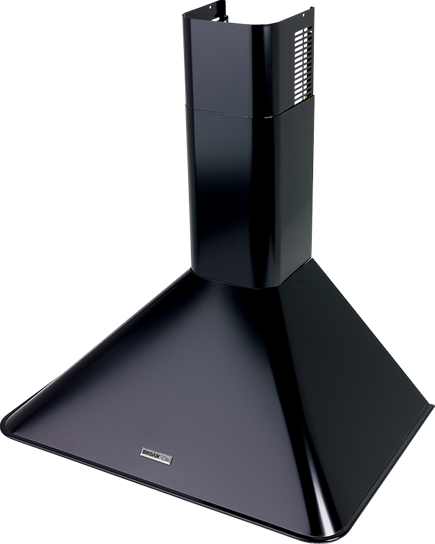

Broan 290 CFM, 30" Wall-Mounted Chimney Hood in Black

Model # RM503023
0 out of 5 0 Reviews
Call for our Best Price! 310-450-1000

Product Details

  • "290 CFM internal blower provides the power you need at 6.5 Sones, using 6" round ductwork for easy installation
  • Multi-speed slide control allows you to set just the right exhaust speed to keep up with whatever is cooking
  • Dual 40-watt incandescent lamps (included) are protected within an integrated light assembly; one light level on lamps
  • Dishwasher-safe aluminum filter features a quick-release latch and professional style appearance for good looks and a fresh kitchen
  • Ducted/non-ducted telescopic flue (RFX5023) accommodates ceiling heights from 8 to 9 feet (included); non-duct flue extensions available in stainless steel only (RFXN5004). Extension flues for higher ceilings are also available, sold separately
  • Optional non-duct filter (FILTEREB40) for indoor exhaust recirculation is included for installations that cannot be ducted out
  • Heat Sentry detects excessive heat and adjusts speed of blower to high automatically to prolong product life"

TECHNOLOGY & INNOVATION HIGHLIGHTS

Accessories Optional : Yes

Accommodates Ceiling Height : 8' - 9' Opt. 10'

Blower Air Mover Type : Centrifugal Blower

Blower Included : Yes

Boost Mode : No

Cabinet Width (inches) : 30"

CFM (Airflow) : 290

Color/Finish : Black

Control Feature Filter Reminder : No

Damper Included : Yes

Delay Shut Off : No

Digital Clock : No

Dishwasher Safe Filters : Yes

Duct Connector Size : 6" Round

ENERGY STAR® certified product : No

Filter Included : Yes

Filter Type : Aluminum

Flue Accommodates ceilings up to xx ft : 8' - 9' Opt. 10'

Heat Sentry - Temperature Sensor : Yes

HVI Certified : Yes

Light Bulb Quantity : 2

Light Bulbs Included : Yes

Lighting Function : One-level

Lighting Type : Incandescent

Max Sones/100 CFM : 2.2

Minimum Height Above Cook Top : 24"

Mounting Type : Wall

Nightlight Setting : No

Non-Stick Coated : No

Product Depth (inches) : 19-5/8"

Product Height (inches) : 33" min - 43" max

Product Width (inches) : 30"

Rated Amps : 2.86

Rated Voltage : 120

Remote Control : No

Sones Certified Horizontal Rectangular High : N/A

Sones Certified Horizontal Rectangular Low : N/A

Sones Certified Vertical Rectangular High : N/A

Sones Certified Vertical Rectangular Low : N/A

Sones Certified Vertical Round High : 6.5

Sones Certified Vertical Round Low : N/A

Switch Control Settings : Variable

Switch Style : Slide

Timer : No

UL Listed : Yes

Broan Model # RM503023

Broan 290 CFM, 30" Wall-Mounted Chimney Hood in Black
